Planox seamless welded washtrough for wall mounting, chromium nickel steel, satin finished surface, material thickness of washtrough 0.8 mm / side panels 1.2mm, side panels with integrated wall brackets, without tap ledge or overflow, 40 mm rear upstand, central waste. Supplied with 38mm dome waste and mounting materials. Optional shroud, splashback and supporting frames are available as extras.

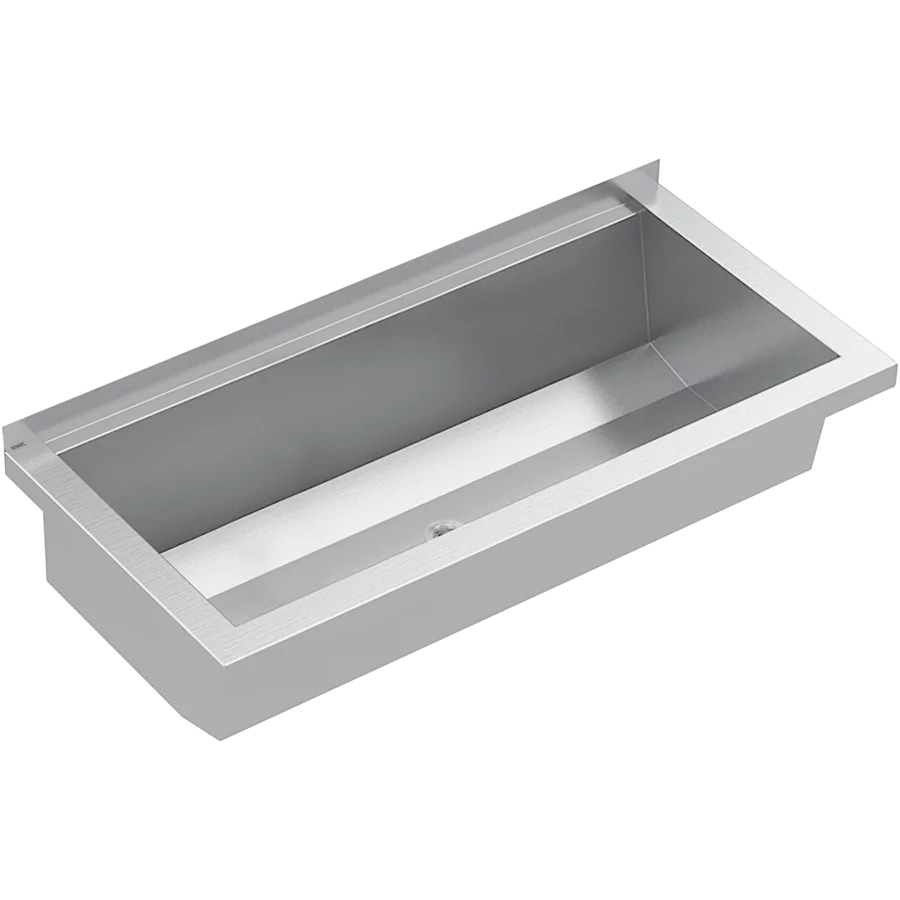

PL8-UK Planox 800mm stainless steel washtrough
PLANOX seamless welded washtrough for wall mounting, chromium nickel steel, satin finished surface, material thickness of washtrough 0.8 mm / side panels 1.2 mm, side panels with integrated wall brackets, without tap ledge or overflow, 40 mm rear upstand, central waste. Supplied with 38mm dome waste and mounting materials.
| Material | Stainless steel |
|---|---|
| Gross weight | 8.13kg |
| Overall dimensions | 800 x 210 x 382mm (W x H x D) |
| Type of mounting | Wall mounting |
| Surface finish | Satin finished |
| Net weight | 5.74kg |
| Splash back height | 30mm |
| Bowl height | 180mm |
| Bowl width | 320mm |
| Bowl depth | 720mm |
| Number of waste holes | 1 |
| Overall depth | 382mm |
| Overall height | 210mm |
| Overall width | 800mm |
| Rear upstand | No |
| Splash back | Optional |
| Number of tap holes | 1 |
| Tap ledge | No |
| Type of waste kit | Perforated waste |
| Waste hole position | Centre |
| Waste hole projection | 182mm |
| Waste kit included | No |
