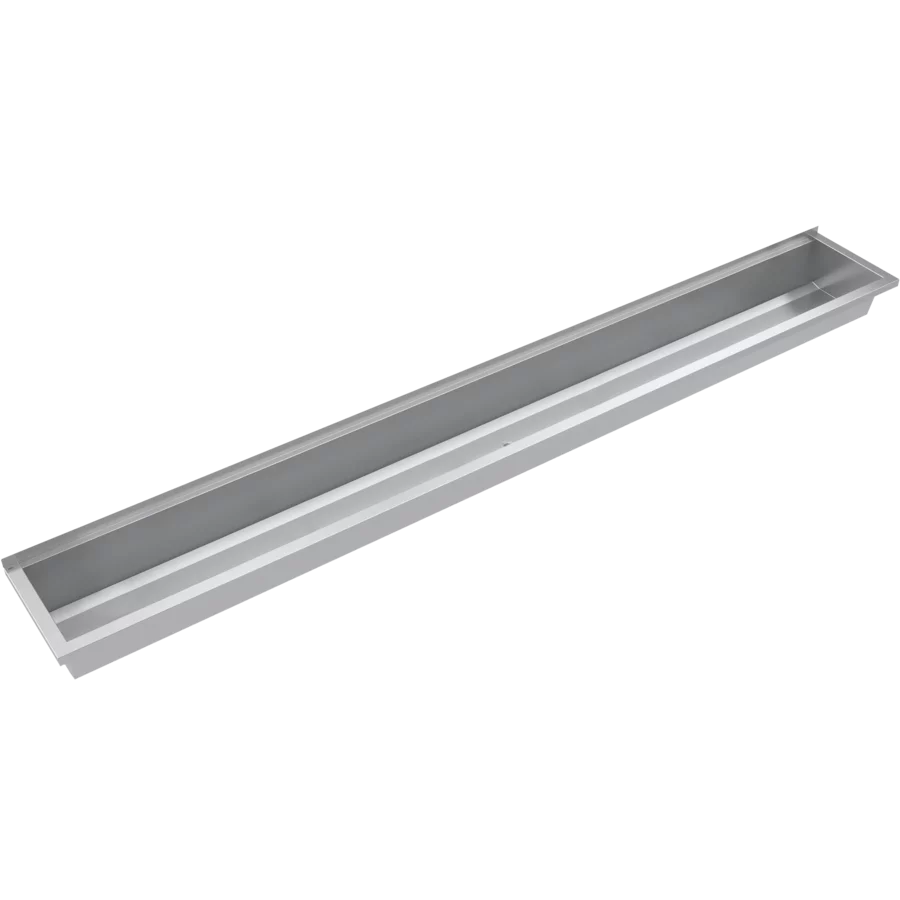

PL30-UK Planox 3000mm stainless steel washtrough

PLANOX seamless welded washtrough for wall mounting, chromium nickel steel, satin finished surface, material thickness of washtrough 0.8 mm / side panels 1.2 mm, side panels with integrated wall brackets, without tap ledge or overflow, 40 mm rear upstand, central waste. Supplied with 38mm dome waste and mounting materials

Product Code: PL30-UK

Planox seamless welded washtrough for wall mounting, chromium nickel steel, satin finished surface, material thickness of washtrough 0.8 mm / side panels 1.2mm, side panels with integrated wall brackets, without tap ledge or overflow, 40 mm rear upstand, central waste. Supplied with 38mm dome waste and mounting materials. For a length of 1800 mm or more, an additional bracket is supplied. Optional shroud, splashback and supporting frames are available as extras.

Gross weight

20.79kg

Net weight

18.54kg

Splash back height

30mm

bowl height

180mm

Bowl width

320mm

Bowl depth

2,920mm

Material

Stainless steel

Material code

1.4301 chrome nickel steel V2A

Number of waste holes

1

Overall depth

382mm

Overall height

210mm

Overall width

3,000mm

Rear upstand

No

Splash back

Optional

Surface finish

Satin finish

Number of tap holes

0

Tap ledge

0

Type of mounting

Wall mounting

Type of waste kit

Perforated waste

Waste hole position

Centre

Waste hole projection

182mm

Waste kit included

No
