Planox seamless welded washtrough for wall mounting, chromium nickel steel, satin finished surface, material thickness of washtrough 0.8 mm / side panels 1.2mm, side panels with integrated wall brackets, without tap ledge or overflow, 40 mm rear upstand, central waste. Supplied with 38mm dome waste and mounting materials. Optional shroud, splashback and supporting frames are available as extras.

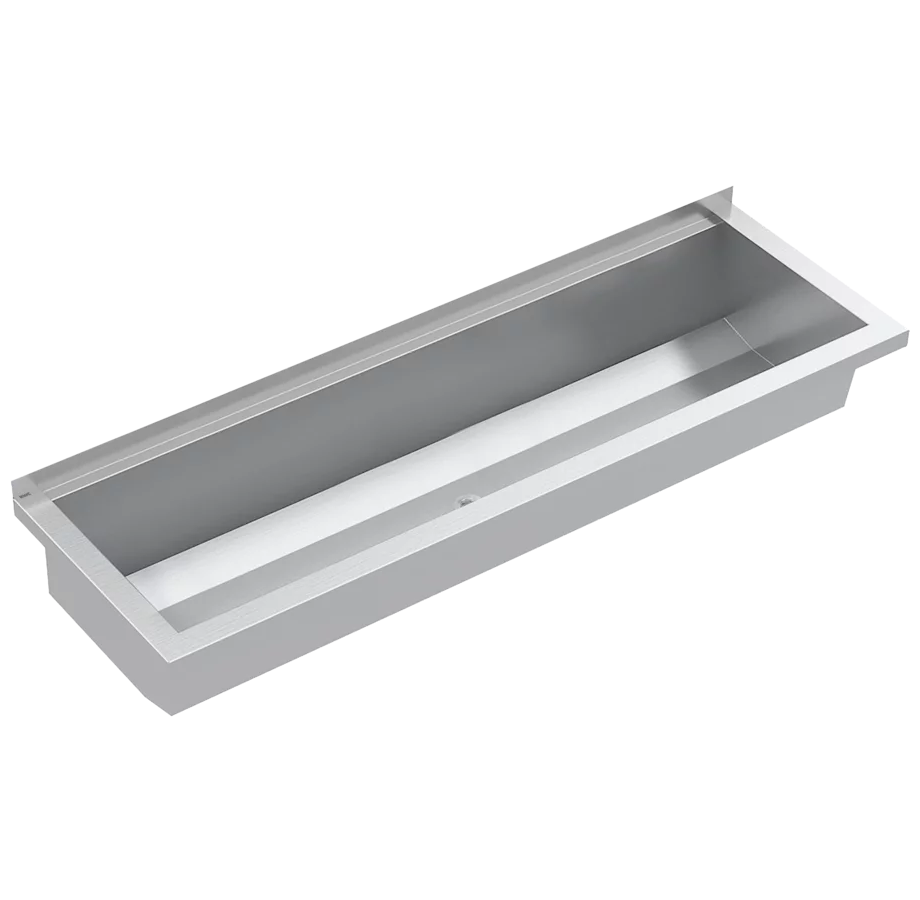

PL12-UK Planox 1200mm stainless steel washtrough
PLANOX seamless welded washtrough for wall mounting, chromium nickel steel, satin finished surface, material thickness of washtrough 0.8 mm / side panels 1.2 mm, side panels with integrated wall brackets, without tap ledge or overflow, 40 mm rear upstand, central waste.
| Gross weight | 9.5kg |
|---|---|
| Net weight | 7.66kg |
| Splash back height | 30mm |
| Bowl height | 180mm |
| Bowl width | 320mm |
| Bowl depth | 1,120mm |
| Material | Stainless steel |
| Material code | 1.4301 chrome nickel steel V2A |
| Number of waste holes | 1 |
| Overall depth | 382mm |
| Overall height | 210mm |
| Overall width | 1,200mm |
| Rear upstand | No |
| Splash back | Optional |
| Surface finish | Satin finish |
| Number of tap holes | 0 |
| Tap ledge | No |
| Type of mounting | Wall mounting |
| Type of waste kit | Perforated waste |
| Waste hole position | Centre |
| Waste hole porjection | 182mm |
| Waste kit included | No |
