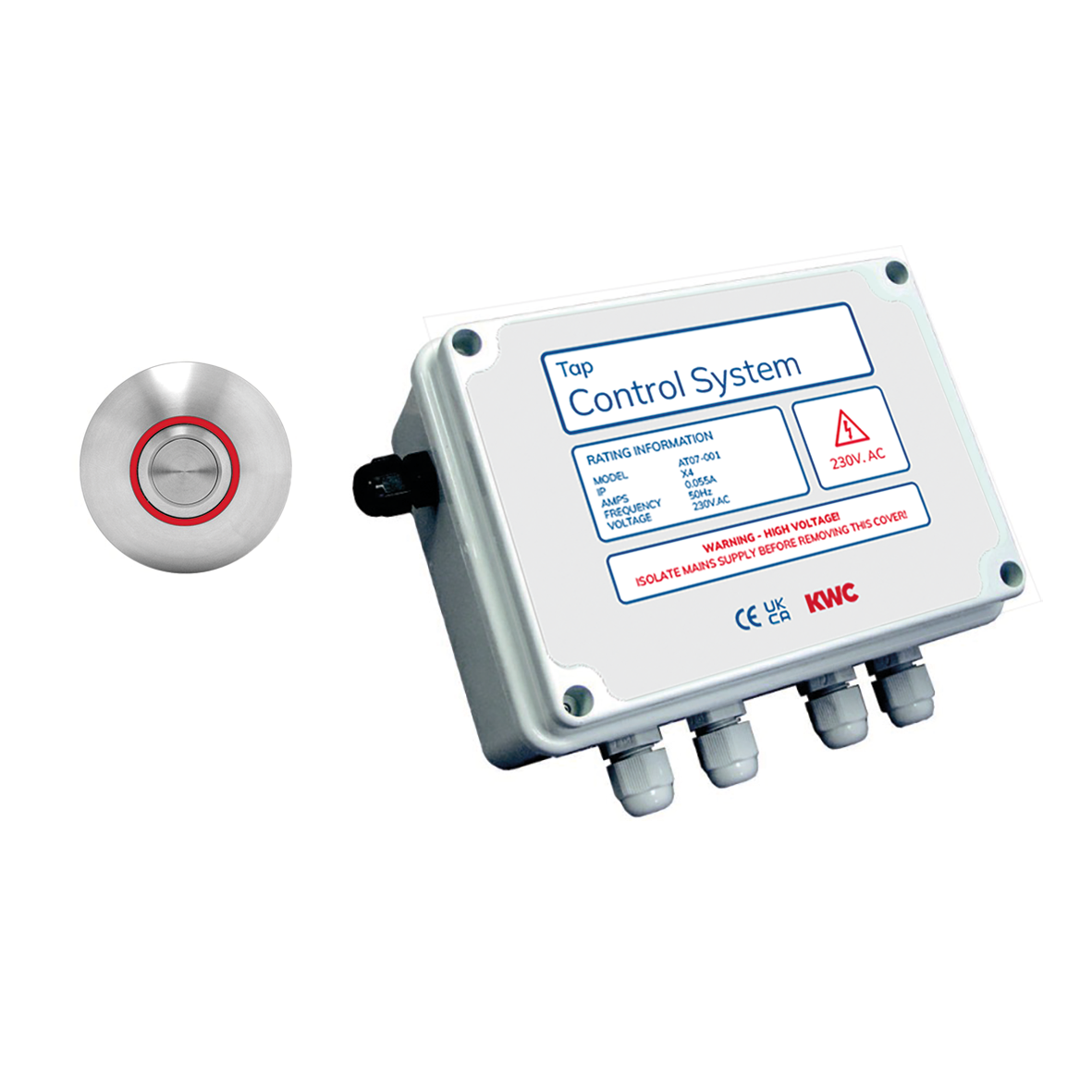

Tap control system – 1 station kit – Tactile switch with 50mmø bezel

£383.57 excl. VAT

Product Code: AT07-012

Single station tap control system kit complete with tactile sensors. Designed to be wall-mounted. Mains operated 230V. Ability to control valves for 1 or 2 spouts or hot and cold valves for single spout. Manually adjustable setting options include run on times, hygiene purges and lock-outs.
Kit includes:
AT07-001 Tap control system for 1 or 2 taps
AC17-101 Anti-microbial plastic valve 12v DC
AC02-046 Tactile switch with 50mmø stainless bezel & blue insert AC02-047 Tactile switch with 50mmø stainless bezel & red insert

Material

ABS

Gross weight

0.7kg

Type of mounting

Wall mounted

Power source

Mains

Voltage

230V a.c.

Sensor voltage

5V DC

Valve voltage

12V DC

Valve power

3W normally closed

Control inputs

Sensor 1, sensor 2

Control outputs

Valve 1, valve 2

Control configuration

Controls valves for 1 or 2 spouts, or hot and cold valves for single spout

Operation type

Wave-on or tactile sensor (sold separately)

IP rating

54

Current

0.055A

Frequency

50Hz

Adjustable timing

6 – 20secs (default 6secs)

Purge facility

Yes (ON / OFF) default OFF

Operations lock out

Yes (ON / OFF)

AT07-001

Tap control system for 1 or 2 taps

AC17-101

Anti-microbial 12V DC normally closed solenoid valve

AC02-047

Tactile switch with 50mmø stainless steel bezel and red insert
