Urinal installation frame

£124.10 excl. VAT

Product Code: CMPX136

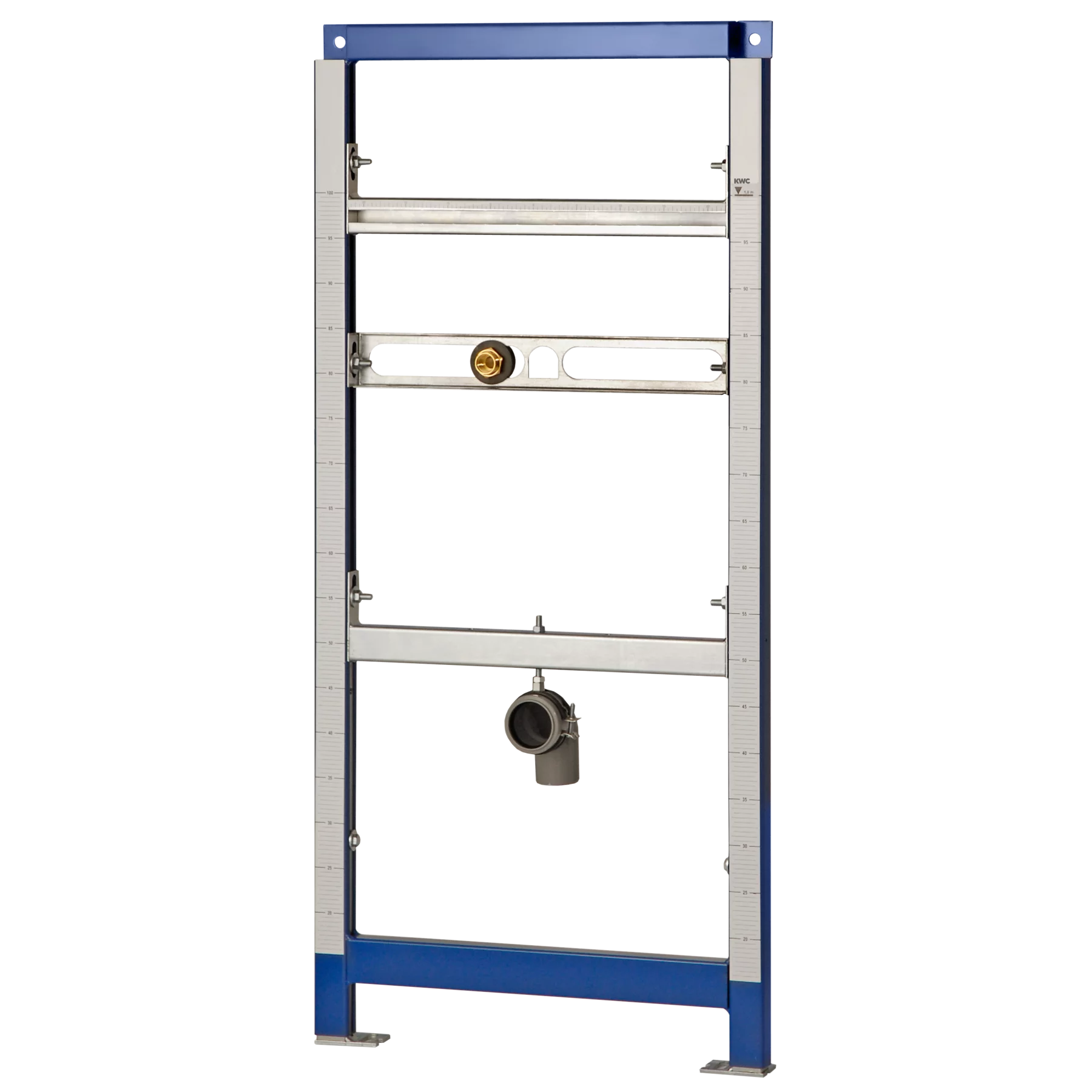

AQUAFIX urinal installation frame for stainless steel urinals with siphon control, self-supporting powder coated steel frame construction, TÜV-tested, for individual mounting for dry-wall lining, height adjustable fastening of objects, height adjustable fitting connection and outlet mount, premounted for KWC urinal CMPX538, sound-insulated wall duct G 1/2, universal outlet bend DN 50, urinal fastening bolts, building protection and fixing material.

Application

urinal flush valve

Barrier-free

no

Built-in fitting model

built-in section

Height adjustment

200mm

Diameter nominal

DN 15

Material

steel

Minimum wall thickness

135mm

Type of mixing

no

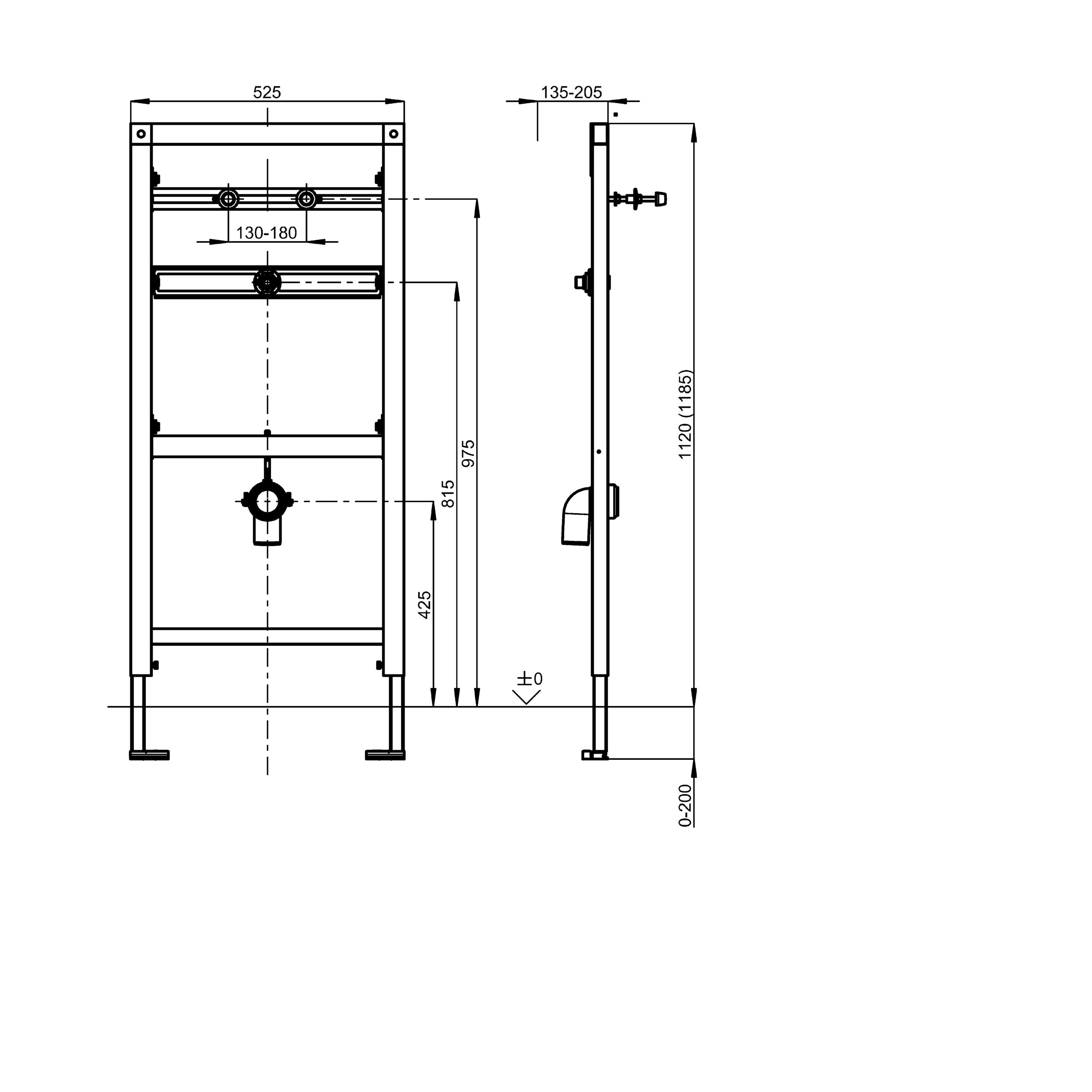

Overall depth

135mm

Overall height

1120mm

Overall width

525mm

Type

installation element

Type of mounting

wall and floor mounting
