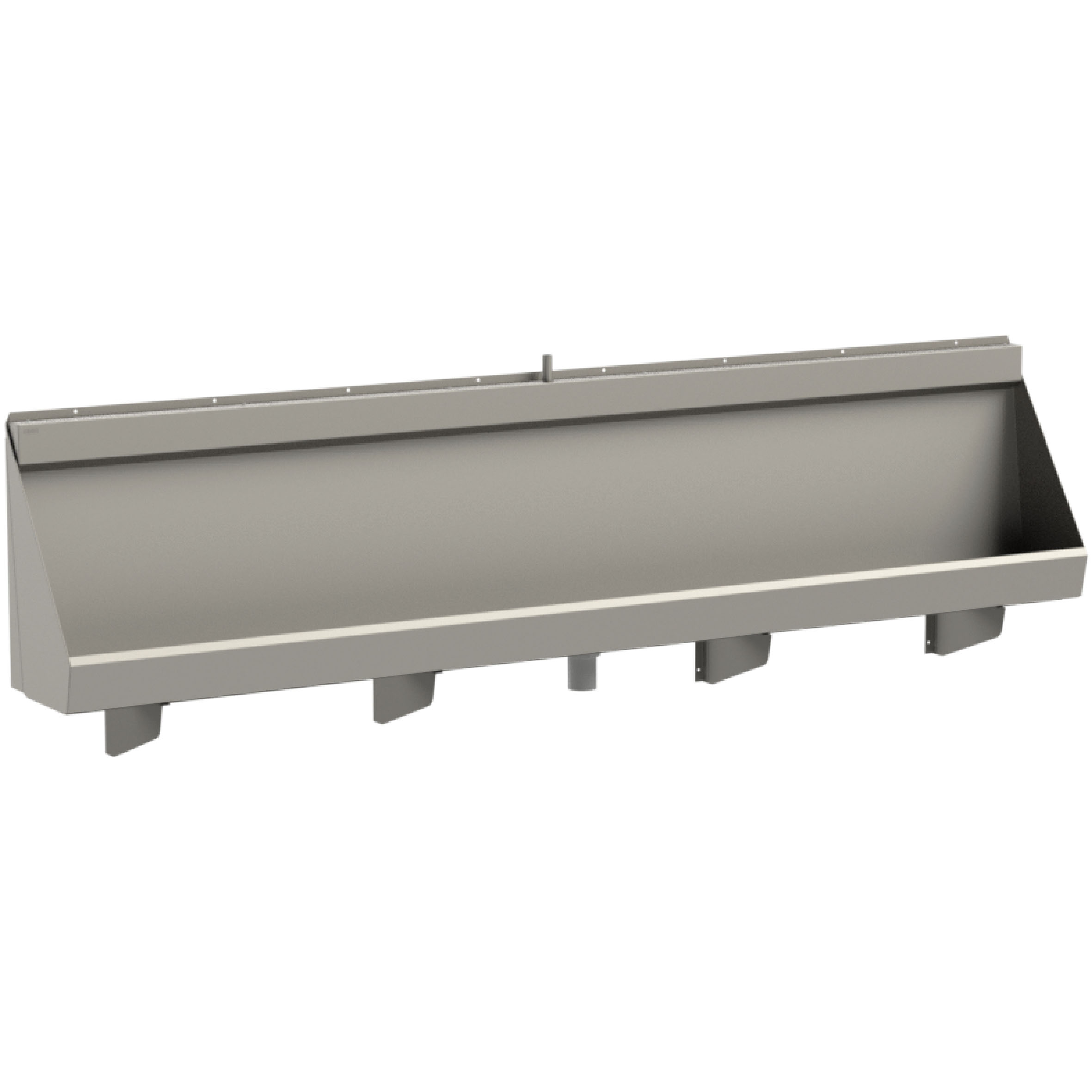

2400mm Wide urinal trough – concealed sparge

Centinel wall mounted urinals with concealed sparge pipe. Manufactured from 1.2mm thick grade 1.4301 (304) stainless steel with a satin polish finish. Designed with the waste outlet positioned centrally within the urinal. Supplied complete with a 50mm waste, concealed sparge pipes, sparge pipe cover, interconnecting pipework, plastic cistern, downpipe and trap cover. The recommended height for fixing the cisterns is 750 – 950mm, from the underside of the cistern to the top return of the urinal. All urinals
are screw fixed to the wall through fixing holes in the top flange together with separate wall mounted brackets which support the base of the unit.
