AC04-044 toilet and sink combination unit

£2,849.98 excl. VAT

Product Code: AC04-044

WC and washbasin combination unit

Chromium nickel steel toilet and sink combination unit, satin finish surface, for installing against a wall, with integrated electronic tap components. Invisible fixing with grub screws, lockable inspection opening Mounting stand, material thickness 2 mm with elevated rear wall including wall outlet and tactile switch with start/stop function with seamless welded toilet paper roll compartment and seamless moulded wash basin with plastic trap. WC pan, material thickness 1.6 mm with full-length skirting, arranged on the left 45 degrees, concealed bowl, tactile switch for WC flushing, flushing certified pursuant to EN 997, horizontal outlet at the back DN 100. With solenoid to connect to premixed hot water or cold water. Condensation water-proof concealed cistern with single flush technology (9 or 6 litres) Supply voltage 24 V DC Including fixing material.

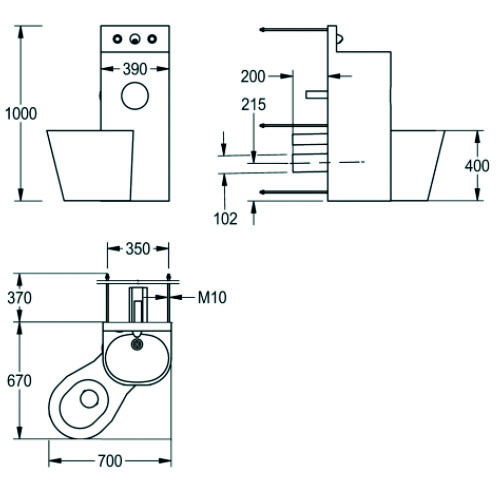

  • Overall dimensions 700 x 1000 x 670 mm (W x H x D)
    WC position on the left

Features

  • Vandal resistant switches
  • Easy installation with pre-connected outlets
  • Easy to clean material
  • Robust 2mm thick stainless steel
Overall width

700mm

Overall height

1000 mm

Overall Depth

670 mm

Type of mounting

bolt mounting, Floor standing

Net weight

40 kg

Gross weight

54.5kg

Material

304 Stainless Steel

Material finish

Satin

Operation

Electronic, Tactile button

Product code

206.0639.100

Toilet roll holder diameter

153mm

Upstand depth

20mm

Upstand height

150mm

WC height

400mm

Access panel

Front access panel

Inlet size

DN 15

Material thickness

2mm

WC position

Left
