Urinal control system – 2 station kit – Infrared sensors with 50mmø bezels

£460.87 excl. VAT

Product Code: UC07-011

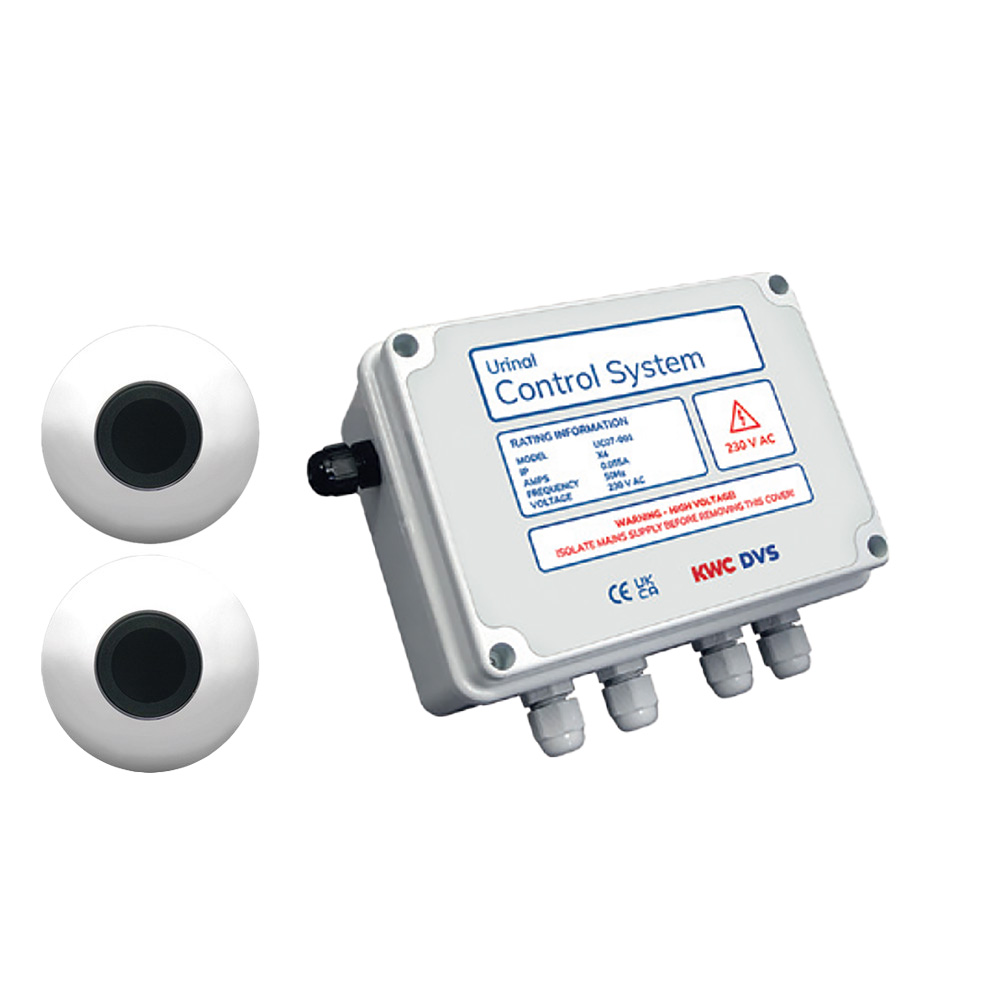

Two-station urinal control system designed for efficient, hygienic operation, automatically activating a flush when users walk away. Engineered for ease of installation and optimal performance, this system is a dependable solution for dual urinal setups. This system is ideal for high-traffic washrooms, providing reliable water management. The kit includes:

1 x Mains Control Box: Provides centralized control for both stations.
2 x Solenoid Valves: Ensures accurate water flow control for each urinal.
2 x Sensors with Ø50mm Bezels: Detect user presence and trigger flushing after use.

Control box material

ABS

Gross weight

1.25kg

Type of mounting

Wall mounted (pre-drilled holes)

Power source

Mains

Voltage

230V a.c.

IP rating

54

Current

0.055A

Frequency

50Hz

Operation type

Wave-on sensor

Sensor voltage

5V DC

Solenoid valve voltage

12V DC

Solenoid valve power

3W normally closed

Adjustable flush duration

1 – 5 seconds

Pre-flush & purge facility

ON / OFF (Pre-flush for 1 second)
(Purge initiated every 12 seconds of non-use)

UC00-027 x2

Infrared urinal sensor
